The UL489 NDM3EU-225 is an electronic molded-case circuit breaker developed for North American low-voltage distribution systems. It combines overload long-delay, short-circuit short-delay and instantaneous protection in a compact frame.
| Rated Insulation Voltage | 800 V |
|---|---|
| Nennspannung | AC 240 / 480 V |
| Frame Current | Up to 225 A |
| Interrupting Capacity | 65 kA at AC 240 V; 35 kA at AC 480 V |
| Mechanical / Electrical Life | 4,000 / 4,000 operations |
| Certifications | UL 489, UL 486E, UL 1998 |
Nur typische Konfiguration. Die endgültigen Nennleistungen werden anhand der Projektanforderungen bestätigt.
Suitable for industrial switchboards, distribution panels and commercial power systems requiring electronic protection and UL-certified equipment.
LV Switchgear, also known as UL 1558 Low Voltage Switchgear, is a key low-voltage power distribution product used for receiving, distributing, controlling, and protecting electrical energy in low-voltage systems. It is commonly installed on the l...
Details anzeigen
1. Applicable Scope and Purpose of Circuit Breaker The NDM2E-100 series of electronic molded case circuit breakers (hereinafter referred to as circuit breakers) apply to infrequent switching of circuits with the AC50Hz, the working voltage of AC...
Details anzeigen

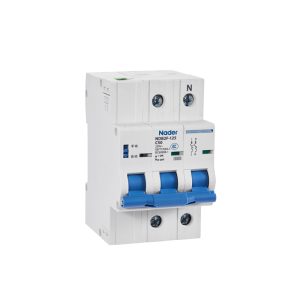

1.Product Overview: NDB2F-125 meter external circuit breaker is specially developes to solve the problem of the prepaid meter external circuit breaker failing to be closed automatically. The product adopts a miniature circuit breaker with the shor...
Details anzeigen

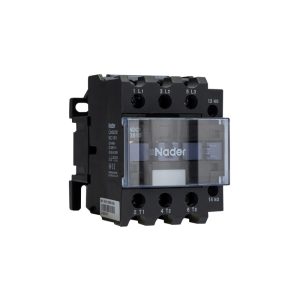

NDC1(Z)-38 AC Contactor, which used in 50Hz(60Hz) AC circuit with the rated voltage of 1000V. It is used in AC-3 type, with the rated working voltage of 415V and rated working current of 38A, to realize distant connection and disconnection of the ...
Details anzeigen
